References

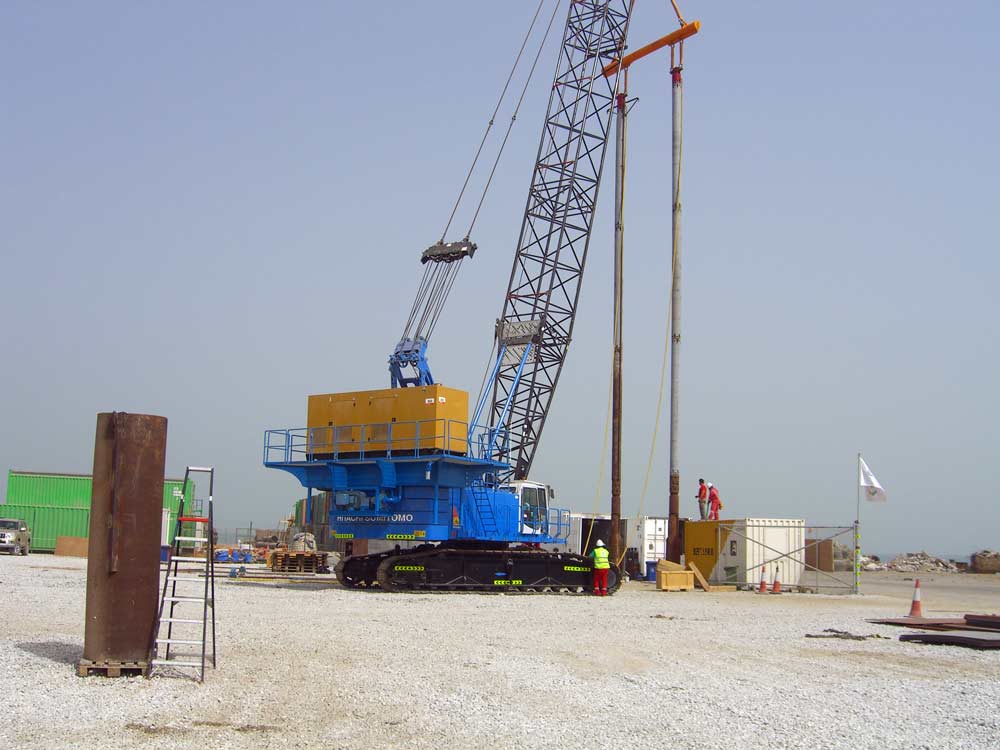

Assembling for a job site in U.A.E. At the backside you see the generator. Below are a water tank and a high pressure water pump. The two frequency transformers are on the other side.

One more job site was finished successfully.

For easy assembling and disassembling the vibroflot have 3 plug systems. The photo shows the disassembling of the vibroflot in the middle.

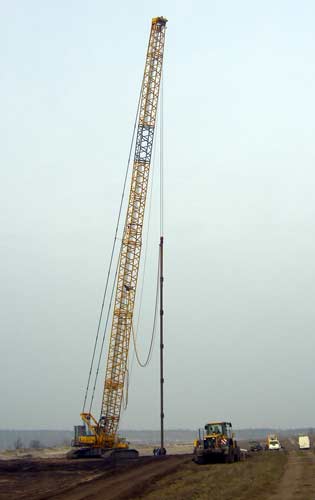

Crawler crane Liebherr 1550, boom length 86 m.

71 m deep compaction, working radius 30 m.

Implementation time one year.

Vibroflot V 500, follow tubes 406 mm.

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

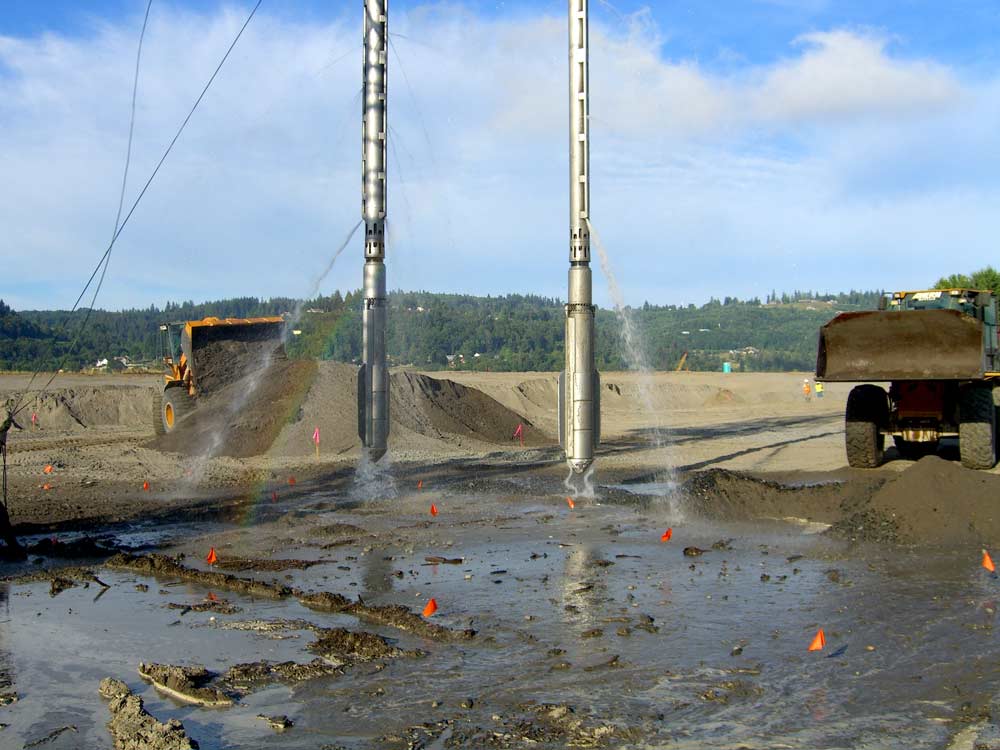

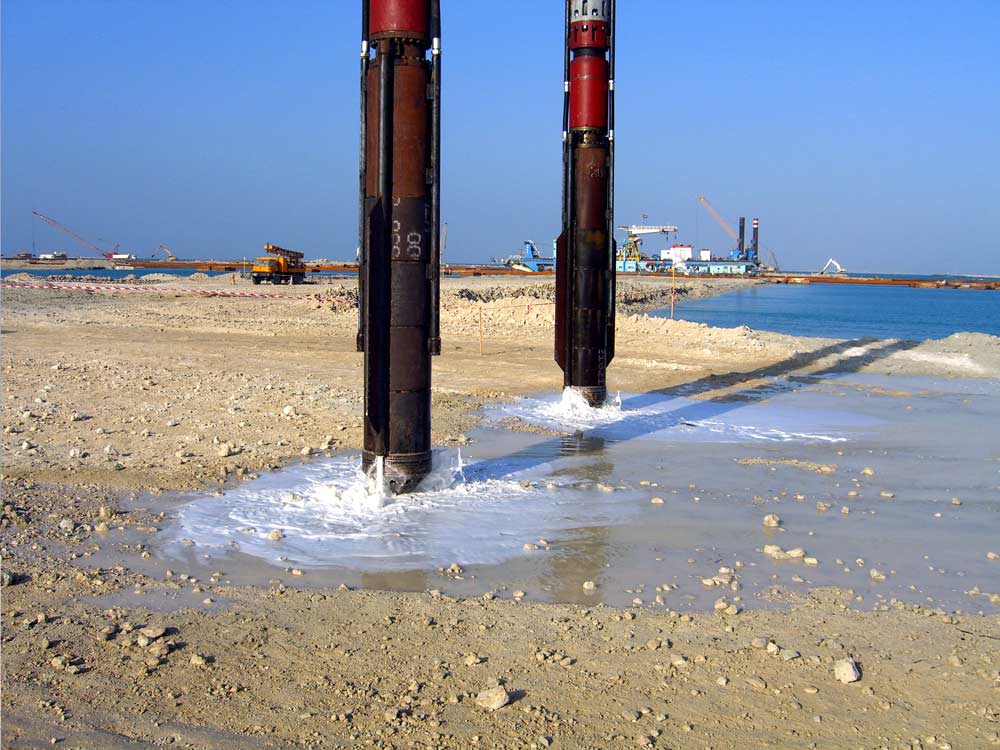

Two machines V 330 are working for ground improvement down to 12 m. The output is about 400 m per day (10 hours).

Two machines V 330 are working for ground improvement down to 12 m. The output is about 400 m per day (10 hours).

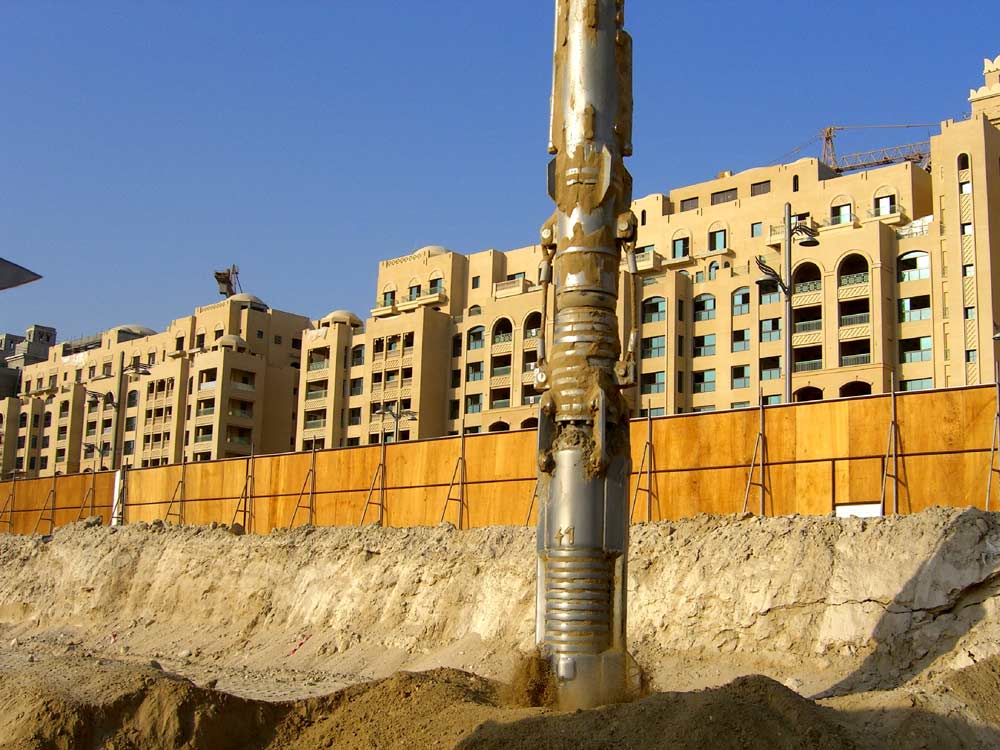

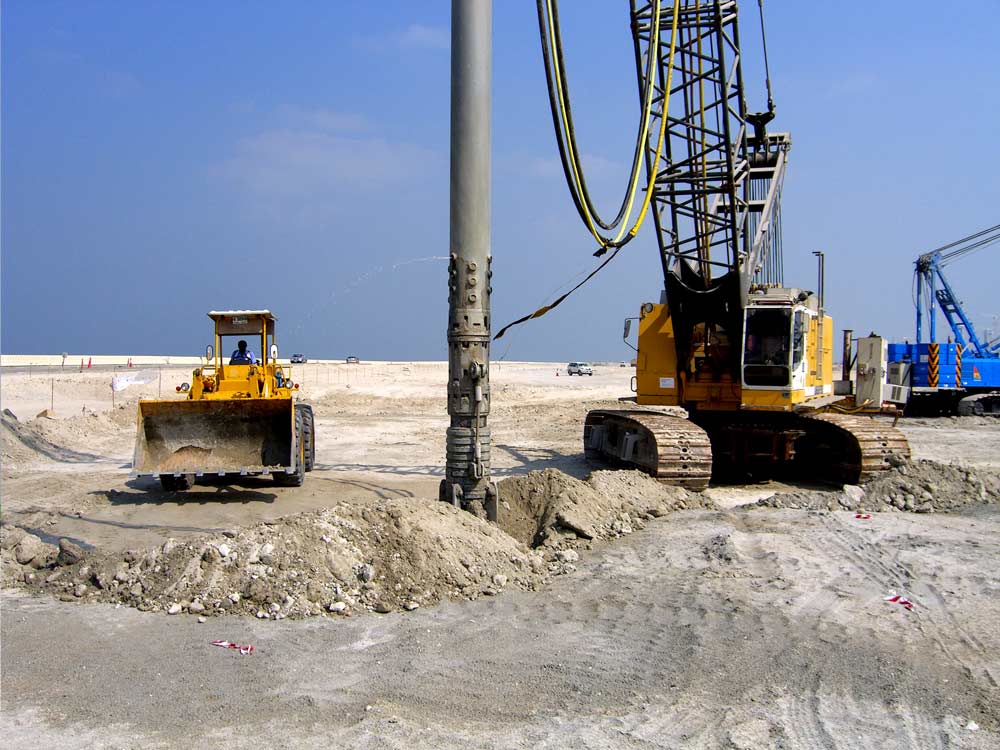

In the moment 6 Vibroflots V 500 are at work in Dubai. The photo shows an 11 years old machine – still working with a space of 5.6 m to 6.0 m.

The follow tubes have a second tube inside, called double system. It’s not necessary to weld additional tubes at the outside of the follow tubes. The plug system between the follow tubes and the vibro helps to change a vibro in 2 hours in hanging position.

The machines are running “full time” (24 hours per day, 7 days per week…). The life capacity between two inside repairs is about 1500 to 2200 hours.

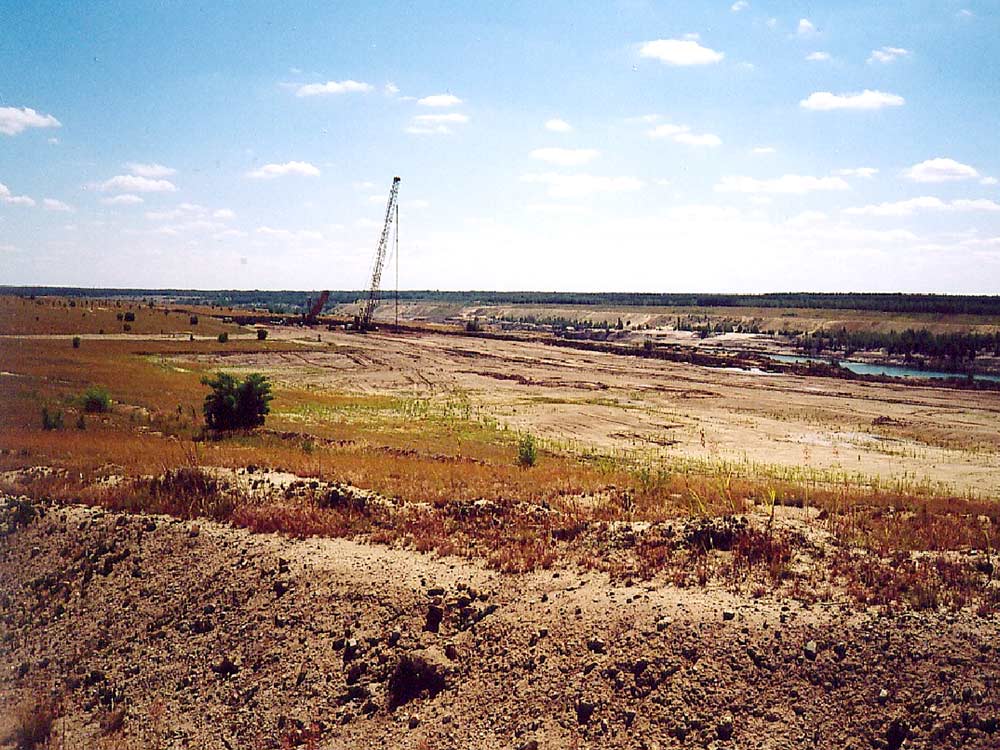

Refilled coalmine
Two hidden dams, depth 56 m
Working radius 45 m
Compaction 2000 to 4000 m³/h

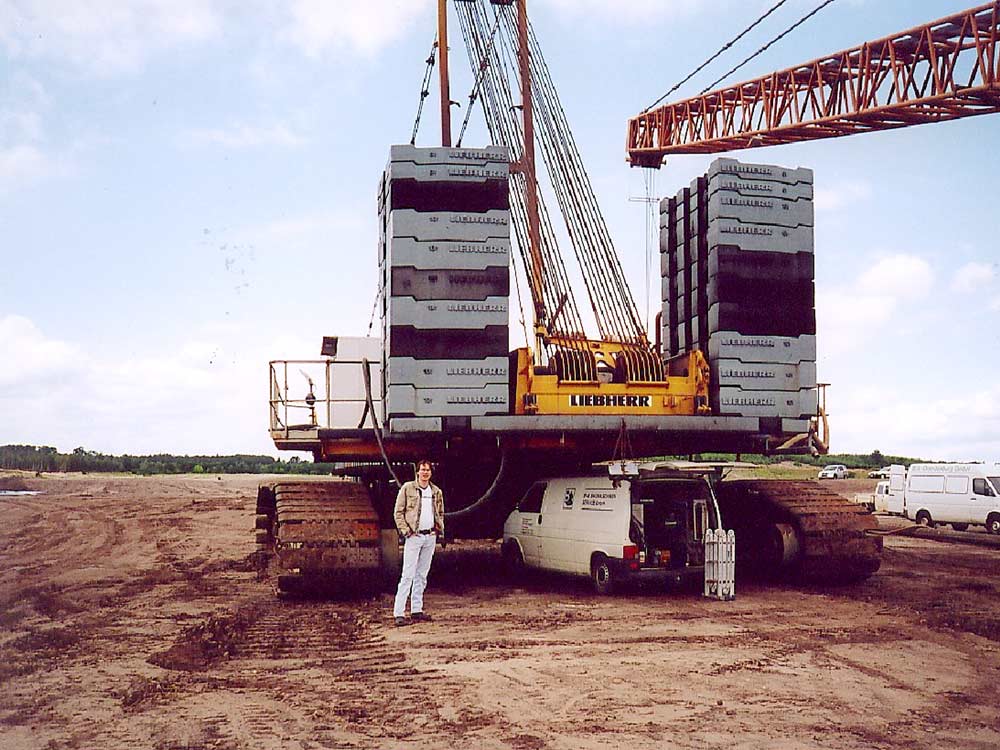

Two cranes 550 tons, mast 86 m

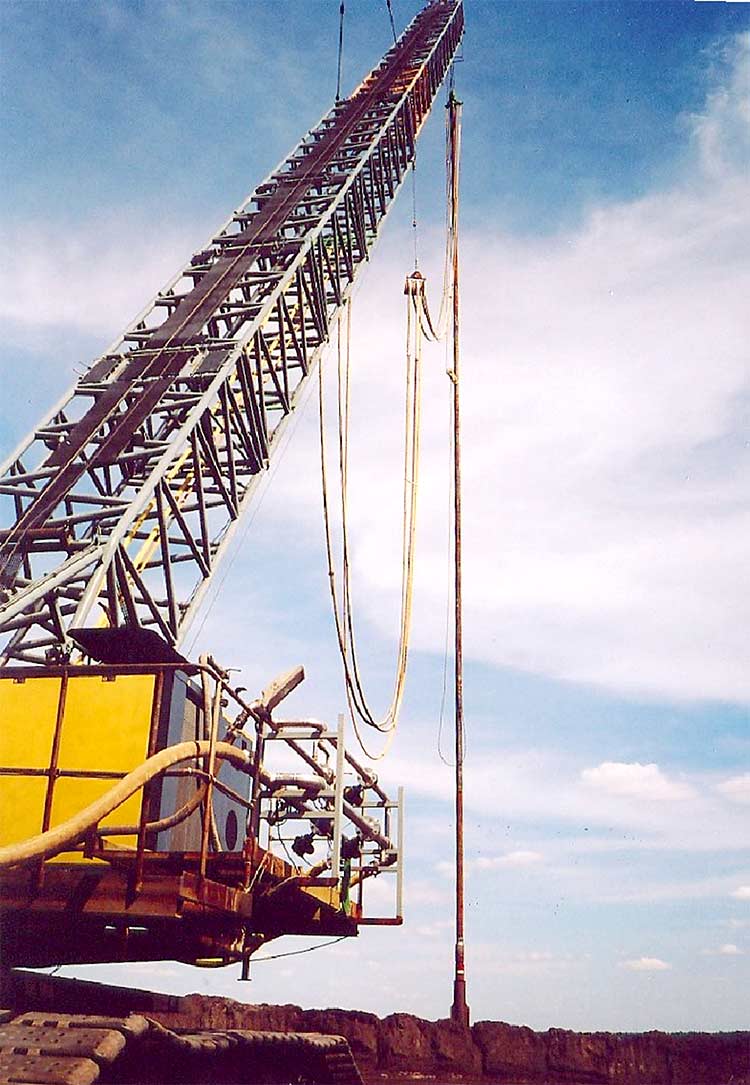

Two new Vibroflot V 500, 212 kW
Plug System 406 mm
Follow up tubes with 2 internal canals
No welded tubes outside
24 Jets at the lower end
Compaction depth 56 m
Working radius 45 m
No point pins, adjusting by computer and GPS +- 2 cm

Control panel with frequency
transformer and computer control for:

• Running direction
• Ampere-Time curve for starting
• Maximum working Ampere
• Speed

Lifting up in steps or continue, controlled by time or Ampere or both
